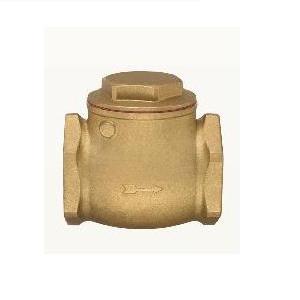

SWING CHECK VALVE
 |
4 |
GASKET |
NBR |
| 3 |
DISC |
BRASS |
| 2 |
CAP |
BRASS |
| 1 |
BODY |
BRASS |
| NO. |
PARTS NAME |
MATERIAL |
TEMPERATURE: -10.C TO110.C
| H |
28 |
35 |
37.5 |
45.5 |
49.5 |
59 |
| L |
46 |
54 |
64 |
75 |
85 |
104 |
| D |
11.5 |
16.5 |
22 |
29 |
34 |
45 |
| T |
NPT1/2 |
NPT3/4 |
NPT1 |
NPT1 1/4 |
NPT1 1/2 |
NPT2 |
| PN |
PN16 |
PN16 |
PN16 |
PN16 |
PN16 |
PN16 |
| |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | UNIT:mm
|
