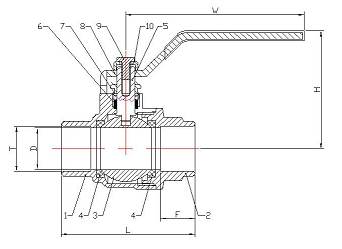

BRASS SOLDER BALL VALVE
 |
10 |
WASHER |
A107 |
| 9 |
SCREW |
A107 |
| 8 |
LEVER |
COATED STEEL |
| 7 |
GLAND |
BRASS |
| 6 |
GLAND PACKING |
PTFE |
| 5 |
STEM |
BRASS |
| 4 |
BALL SEATS |
PTFE |
| 3 |
BALL |
BRASS |
| 2 |
BODY CAP |
BRASS |
| 1 |
BODY |
BRASS |
| NO. |
PARTS NAME |
MATERIAL |
TEMPERATURE: -10.C TO 110.C
| H |
47.5 |
54 |
58 |
69 |
78.5 |
91.5 |
| W |
80 |
105 |
105 |
120 |
135 |
160 |
| F |
14 |
18 |
20 |
27 |
28 |
32 |
| L |
57.5 |
67 |
76.4 |
100.5 |
112 |
132 |
| D |
14.5 |
19 |
24 |
30 |
38 |
48 |
| T |
16 |
22 |
28 |
35 |
41 |
54 |
| PN |
600WOG |
600WOG |
600WOG |
600WOG |
600WOG |
600WOG |
| |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 | UNIT:mm
|
|
|
|
