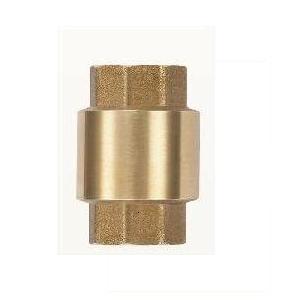

BRASS CHECK VALVE

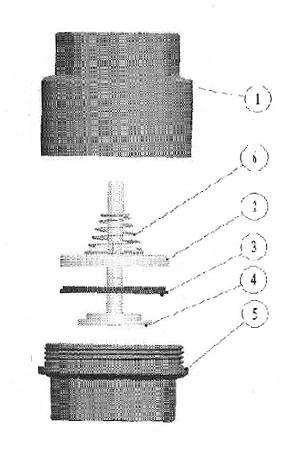

| NO. |
PART CODE |
PART NAME |
Q'TY |
MATERIALS |
| 6 |
DS4102-10-072-A |
SPRING |
1 |
STAINLESS STEEL |
| 5 |
DS4102-08-002-A |
BONNET |
1 |
BRASS |
| 4 |
DS4102-08-032-A |
PLATE |
1 |
NYLON |
| 3 |
DS4102-08-007-A |
SEAL |
1 |
NBR |
| 2 |
DS4102-08-042-A |
PLATE |
1 |
NYLON |
| 1 |
DS4102-08-001-A |
BODY |
1 |
BRASS |
| NO. |
PART CODE |
PART NAME |
Q'TY |
MATERIALS |
| SIZE(inch) |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
21/2" |
3" |
4" |
| A(mm) |
45 |
47 |
51 |
56.5 |
64 |
69 |
77 |
88 |
95.5 |
103 |
| B(mm) |
29.5 |
33 |
41.5 |
47.5 |
60 |
68 |
81 |
104 |
111 |
141 |
| C |
NPT3/8 |
NPT1/2 |
NPT3/4 |
NPT1 |
NPT11/4 |
NPT11/2 |
NPT2 |
NPT21/2 |
NPT3 |
NPT4 |
|
Working pressure
kg/cm2 |
12 |
12 |
12 |
12 |
10 |
10 |
10 |
8 |
8 |
8 |
| Working pressure psl |
170 |
170 |
170 |
170 |
145 |
145 |
145 |
110 |
110 |
110 |
|
|
|
|
